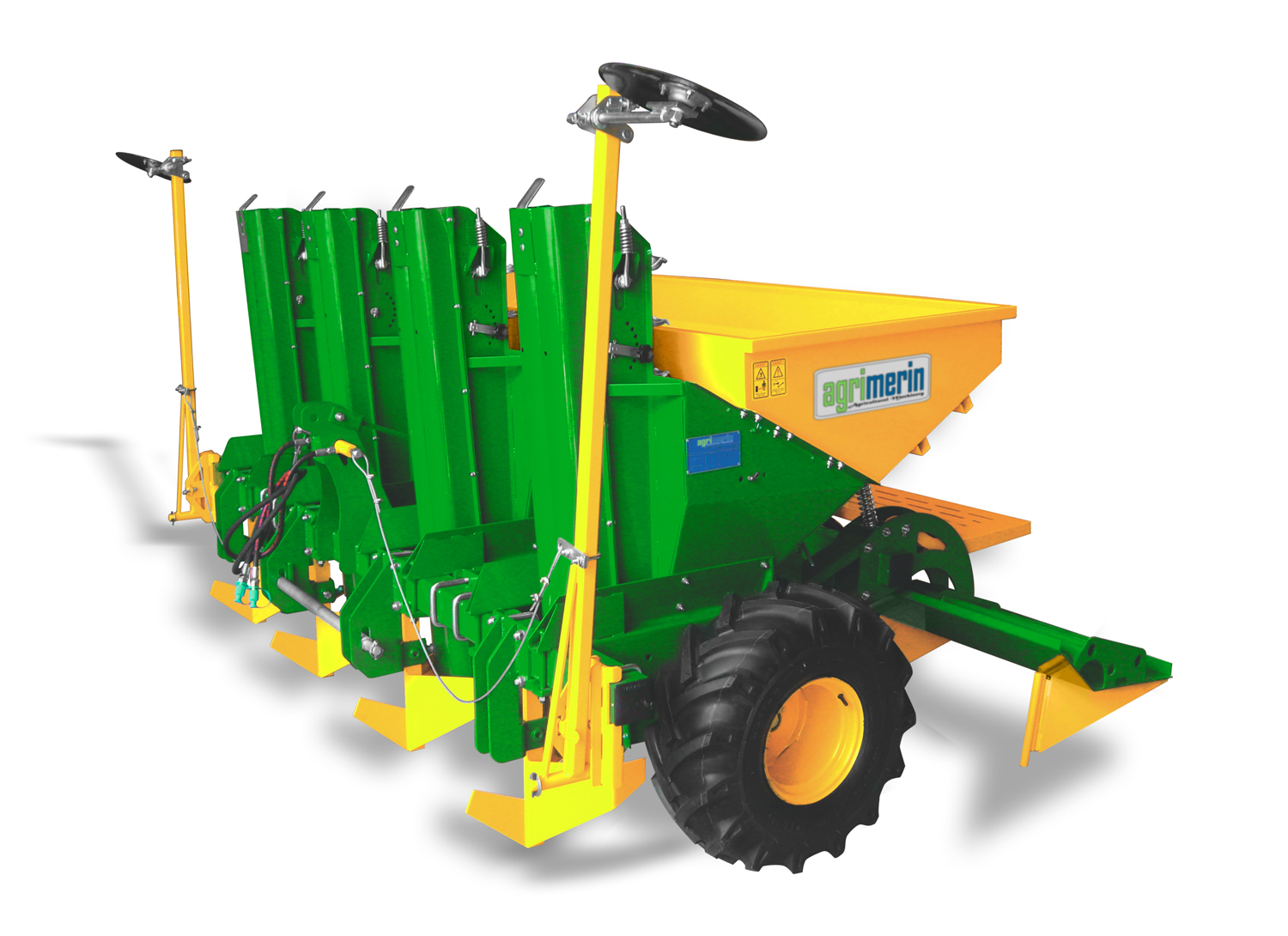

Automatic Potato Planter- 2 and 4 Rows

Automatic Potato Planter- 2 and 4 Rows


thumb

Product Information



It is suitable to operate on the both light soil and heavy soil conditions. The potato moves vertically in lumps between two pulleys that rise for two rubber bands. It turns from top point to downwards and potatoes are sown in the opened holes in lumps downwards from soil surface. Potato lumps which are put in the case rise eith the help of ladleses on an infinite rubber band that moves between two pulleys vertically. While the ledleses are turning down from the highest point, they go on their action by dropping the potato lumps in them and the potato lumps that go down in this way fall on the soil surface from the turning point below. The potato lumps are covered by the coverings discs that from backwards.

Technical Specification
Specifications* Units AMPP 2 AMPP 2 S AMPP 4
Type Belt Chain Belt
Working Depth mm 10-20 10-20 10-20
Number of Tines 3 3 6
Lenght cm 180 190 315
Width cm 170 170 170
Height cm 180 140 180
Weight kg 460 560 710
Required Power hp 45-70 45-70 70-80
