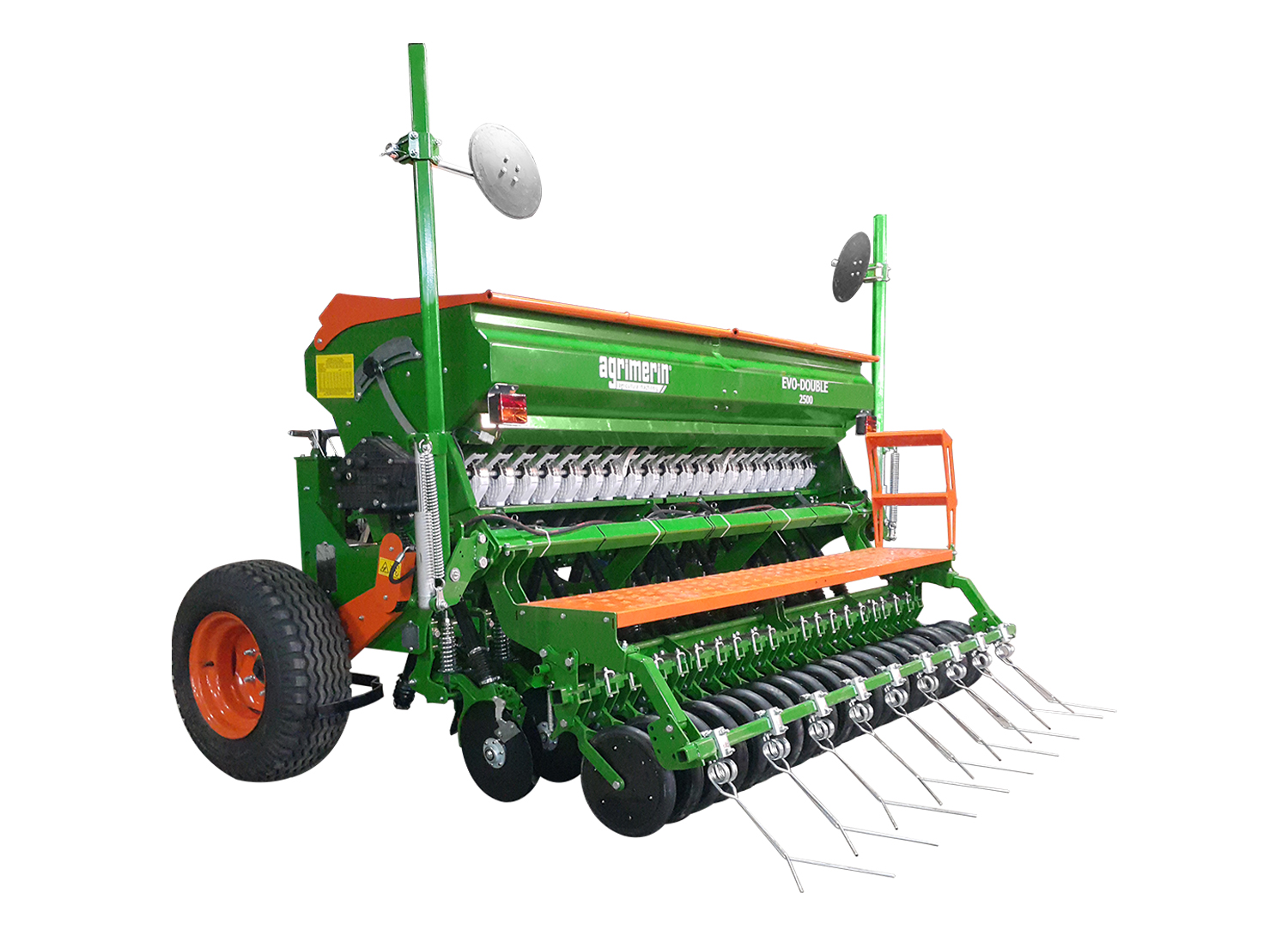

Evo Universal Seed Drill Single/Double Disc
Evo Universal Seed Drill Single/Double Disc
Product Information
Agrimerin universal seed drill machine is designed as single disc and double discs options. It is a planting machine of hydraulically suspended type which is suitable of planting by connecting to a tractor by a three point hitch mechanism. Double disc machines should be used in the cases where there is plenty of straw in the field. There are pressure wheels behind the coulters.These pressure wheels apply pressure on the falling seed. Single disc machines have a seed-directing system as standard. Thus the seed falls to the back of the coulter, into the drill from a very short distance.
Technical Specification
Specifications* | Units | EVO 2500/21 | EVO 3000/25 | EVO 3500/29 | EVO 4000/33 |
Working Width | mm | 2500 | 3000 | 3500 | 4000 |
Disc Quantity | pcs | 21 | 25 | 29 | 33 |
Seed Hopper Volume | lt | 476 | 593 | 710 | 828 |
Approximately Weight With Fertilize | kg | 800 | 960 | 1105 | 1215 |
Width | mm | 2060 | 2060 | 2060 | 2060 |
Length | mm | 2600 | 3150 | 3750 | 4100 |
Height | mm | 1450 | 1450 | 1450 | 1450 |
Wheel Size | 500x15 | 500x15 | 600x16 | 600x16 | |
Required Power | hp | 60 | 70 | 80 | 90 |
Total Weight | kg | 320 | 395 | 560 | 700 |
