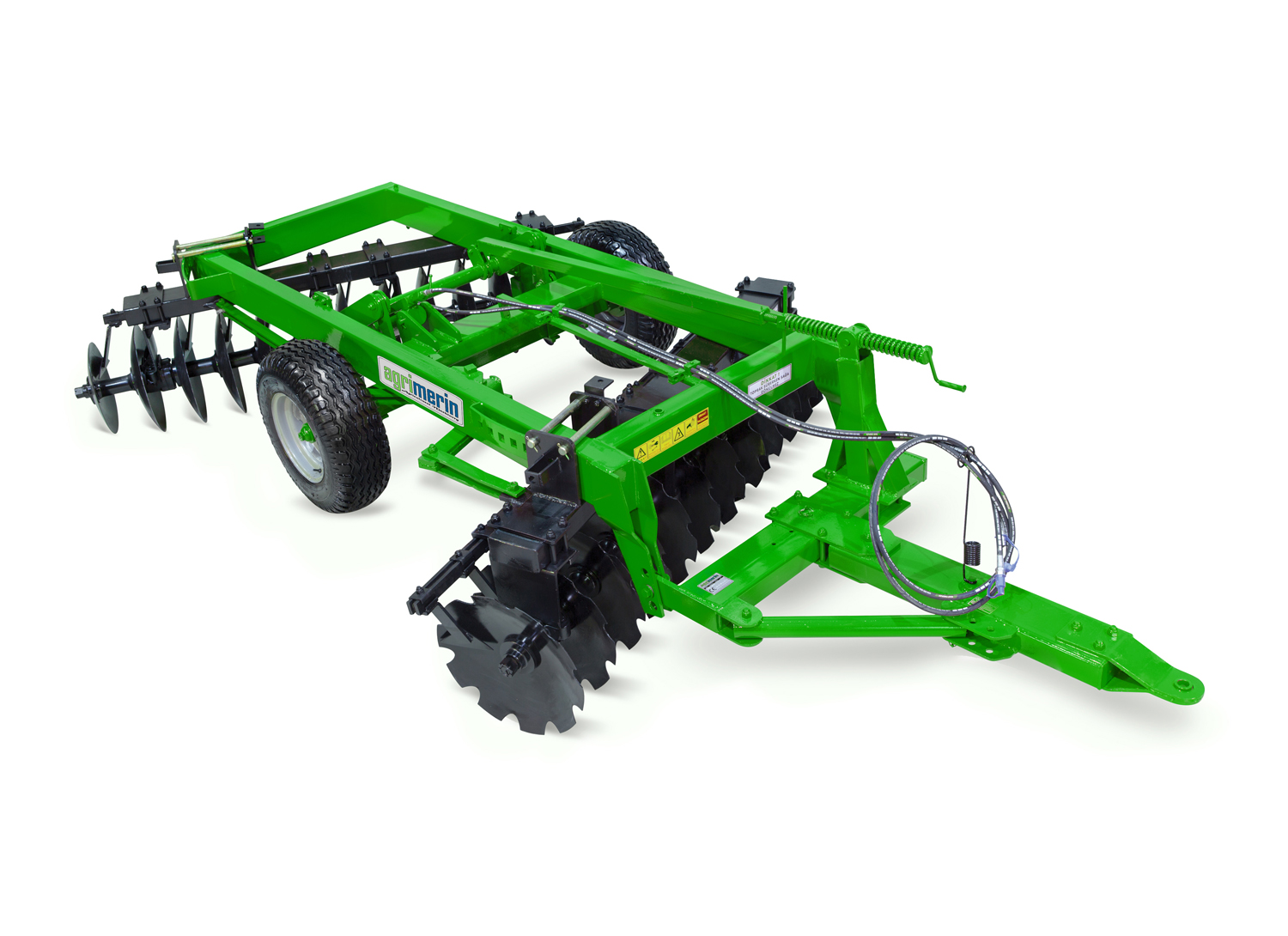

Gobble Disc Harrow
Gobble Disc Harrow
Product Information
Agrimerin Gobble Disc Harrows are used for stubble ploughing and chopping plant residues before cultivation. These implements are very effective on heavy soils in comparison to other disc harrows. It is easy to transport these machines from one field to another by the help of hydraulic lifted wheels placed on equipment. The discs are made of Boron steel so that the usage life of harrow discs and chassis are rather long.
Technical Specification
Specifications* | Units | GOBBLE 16/56 L | GOBBLE 18/56 L | GOBBLE 20/56 L | GOBBLE 20/56 H | GOBBLE 22/56 L |
Number of Disc | pcs | 16 | 18 | 20 | 20 | 22 |
Total Lenght | mm | 4285 | 4285 | 4285 | 4285 | 4285 |
Total Width | mm | 1590 | 1800 | 2010 | 2010 | 2020 |
Total Height | mm | 1130 | 1130 | 1130 | 1130 | 1130 |
Working Depth | cm | 25 | 25 | 25 | 25 | 25 |
Working Width | mm | 1490 | 1700 | 1910 | 1910 | 2120 |
Space of Discs | mm | 220 | 220 | 220 | 220 | 220 |
Disc Diameter | mm | 560-4.5 | 560-4.5 | 560-4.5 | 560-4.5 | 560-4.5 |
Pcs of Main Bearings | pcs | 4 | 6 | 8 | 8 | 8 |
Frame | 100x100 | 120x120 | 120x120 | 200x100 | 120x120 | |
Required Power | hp | 50-55 | 55-60 | 60-65 | 65-70 | 65-70 |
Total Weight | kg | 1010 | 1110 | 1210 | 1300 | 1370 |
Specifications* | Units | GOBBLE 22/56 H | GOBBLE 24/56 L | GOBBLE 24/56 H | GOBBLE 26/56 H | GOBBLE 28/56 H |
Number of Disc | pcs | 22 | 24 | 24 | 24 | 26 |
Total Lenght | mm | 4285 | 4285 | 4285 | 4285 | 4285 |
Total Width | mm | 2020 | 2430 | 2430 | 2640 | 2640 |
Total Height | mm | 1130 | 1130 | 1130 | 1130 | 1130 |
Working Depth | cm | 25 | 25 | 25 | 25 | 25 |
Working Width | mm | 2120 | 2330 | 2330 | 2540 | 2540 |
Space of Discs | mm | 220 | 220 | 220 | 220 | 220 |
Disc Diameter | mm | 560-4.5 | 560-4.5 | 560-4.5 | 560-4.5 | 560-4.5 |
Pcs of Main Bearings | pcs | 8 | 8 | 8 | 8 | 8 |
Frame | 200x100 | 120x120 | 200x100 | 200x100 | 200x100 | |
Required Power | hp | 65-70 | 75-80 | 75-80 | 85-90 | 90-100 |
Total Weight | kg | 1440 | 1480 | 1570 | 1615 | 1750 |
Specifications* | Units | GOBBLE 28/56 H | GOBBLE 30/56 H | GOBBLE 32/56 H | GOBBLE 34/56 H | GOBBLE 36/56 H |
Number of Disc | pcs | 28 | 30 | 32 | 34 | 36 |
Total Lenght | mm | 4285 | 4285 | 4285 | 4285 | 4285 |
Total Width | mm | 2640 | 3060 | 3270 | 3480 | 3690 |
Total Height | mm | 1130 | 1130 | 1130 | 1130 | 1130 |
Working Depth | cm | 25 | 25 | 25 | 25 | 25 |
Working Width | mm | 2540 | 2960 | 3170 | 3380 | 3590 |
Space of Discs | mm | 220 | 220 | 220 | 220 | 220 |
Disc Diameter | mm | 560-4.5 | 560-4.5 | 560-4.5 | 560-4.5 | 560-4.5 |
Pcs of Main Bearings | pcs | 8 | 8 | 8 | 8 | 8 |
Frame | 200x100 | 200x100 | 200x100 | 200x100 | 200x100 | |
Required Power | hp | 90-100 | 100-120 | 120-130 | 130-150 | 140-150 |
Total Weight | kg | 1750 | 1885 | 2020 | 2155 | 2350 |
