Maize Harvesting Head
Maize Harvesting Head
Product Information

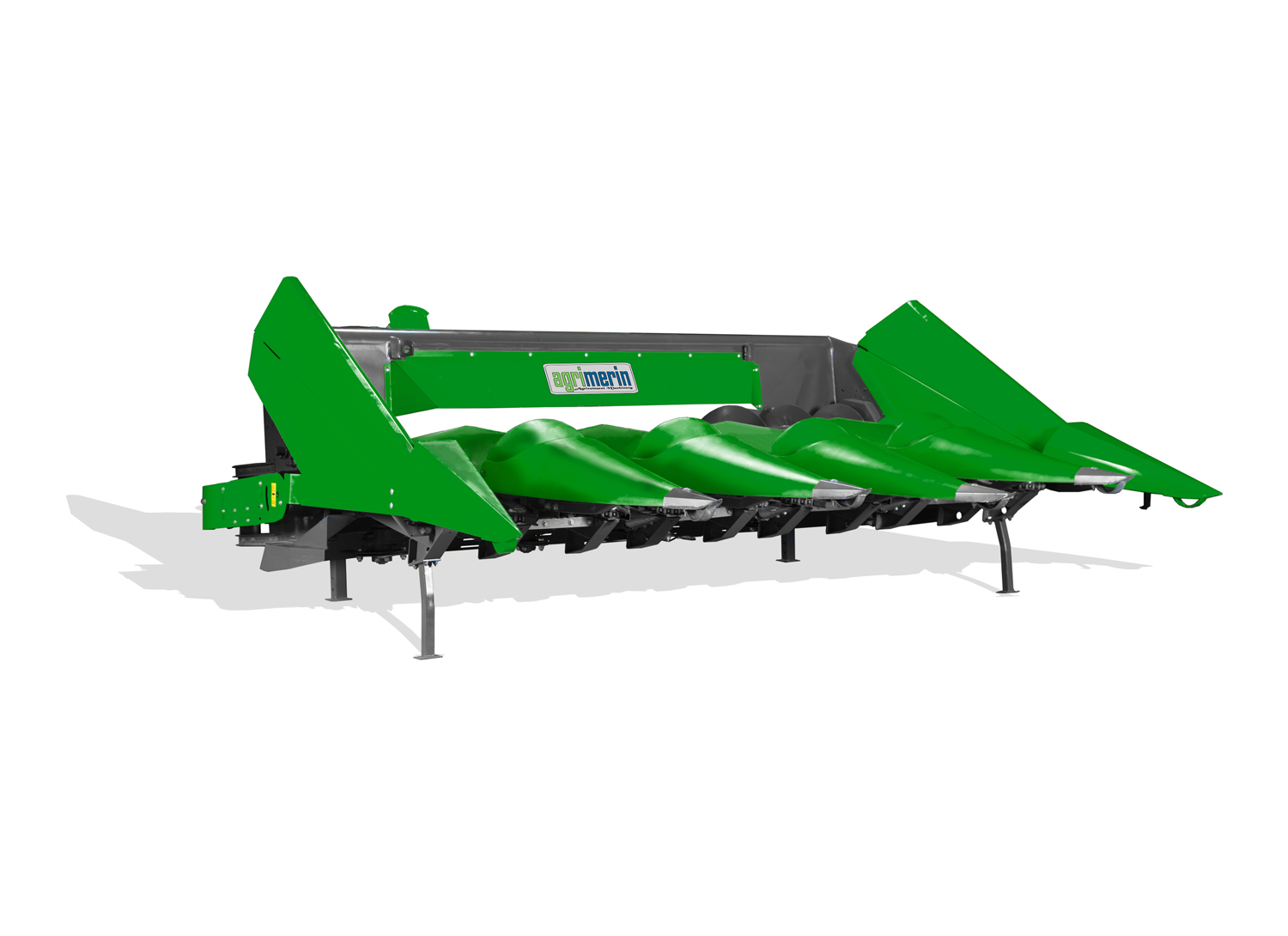

Agrimerin Maize Harvesting Head is developed to harvest maize and is designed specifically to operate coupled with the combine harvester. It reduces loss of sweet corn that may occur on the maize harvesting tray during maize harvesting. It is designed in a way to connect it to every type of combine harvester with a small change in the connection kit. Forage choppers activated with the help of a lever are capable of forage chopping with low power consumption via 2 pieces of tungsten carbide coated blades placed on a steel disc. The operator can adjust apertures between harvesting plates without getting off the cabin with the help of a remote control. Feed chains guaranteeing operation under severe conditions performs well without requiring any adjustment thanks to automatic stretching system. Optionally offered spirals increase collecting performance of the tray.
Technical Specification
Specifications* | Unit | AMMHT 5 | AMMHT 6 | AMMHT 6K | AMMHT 8 |
Model | 5 Row | 6 Row | 6 Row K | 8 Row | |
Number of Rows | pcs | 5 | 6 | 6 | 8 |
Productivity | ha/h | 2.8 | 2.33 | 2.33 | 3.1 |
Operating Width | mm | 3500 | 4200 | 4200 | 5600 |
Total Width | mm | 3610 | 4310 | 4310 | 5710 |
Width in Tracking Position | mm | 3610 | 4310 | 2900 | 5710 |
Total Length | mm | 1900 | 1900 | 1900 | 1900 |
Total Height | mm | 1300 | 1300 | 1300 | 1300 |
Static Weight | kg | 1800 | 2080 | 2320 | 2640 |
Dynamic Weight | kg | 2250 | 2650 | 2950 | 3450 |
Power Supply | Combine Harvester | Combine Harvester | Combine Harvester | Combine Harvester | |
Power Take-off Speed | 1/min | 540-750 | 540-750 | 540-750 | 540-750 |
Distance between rows | mm | 700 | 700 | 700 | 700 |
Recommended Operating Speed | km/h | 5 | 5 | 5 | 4 |
Working area under normal conditions | ha | 2250-3000 | 2700-3450 | 2700-3450 | 3600-4350 |
Permitted Operating Temperature | Between -20 C and +40 C | Between -20 C and +40 C | Between -20 C and +40 C | Between -20 C and +40 C | |
Between -20 C and +40 C | 80dB | 80dB | 80dB | 80dB | |
Allowed Non-Stop Operation Time | 8 | 8 | 8 | 8 | |
Catcher Roll Number | pcs | 10 | 12 | 12 | 16 |
Separator Tip Material | Polyethylene | Polyethylene | Polyethylene | Polyethylene | |
Chain Elevator Number | pcs | 10 | 12 | 12 | 16 |
Catcher Blade Distance Control | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
Distance between Catcher Blades | mm | 35-55 | 35-55 | 35-55 | 35-55 |
Shredder Unit Speed | 1/min | 2150 | 2150 | 2150 | 2150 |
Shredder Unit Tip Speed | m/s | 25.87 | 25.87 | 25.87 | 25.87 |
Shredder Unit Number | pcs | 5 | 6 | 6 | 8 |
Shredder Unit Blade Number | pcs | 10 | 12 | 12 | 16 |
Blade Hardness | RSD-C | 50.8 | 50.8 | 50.8 | 50.8 |
