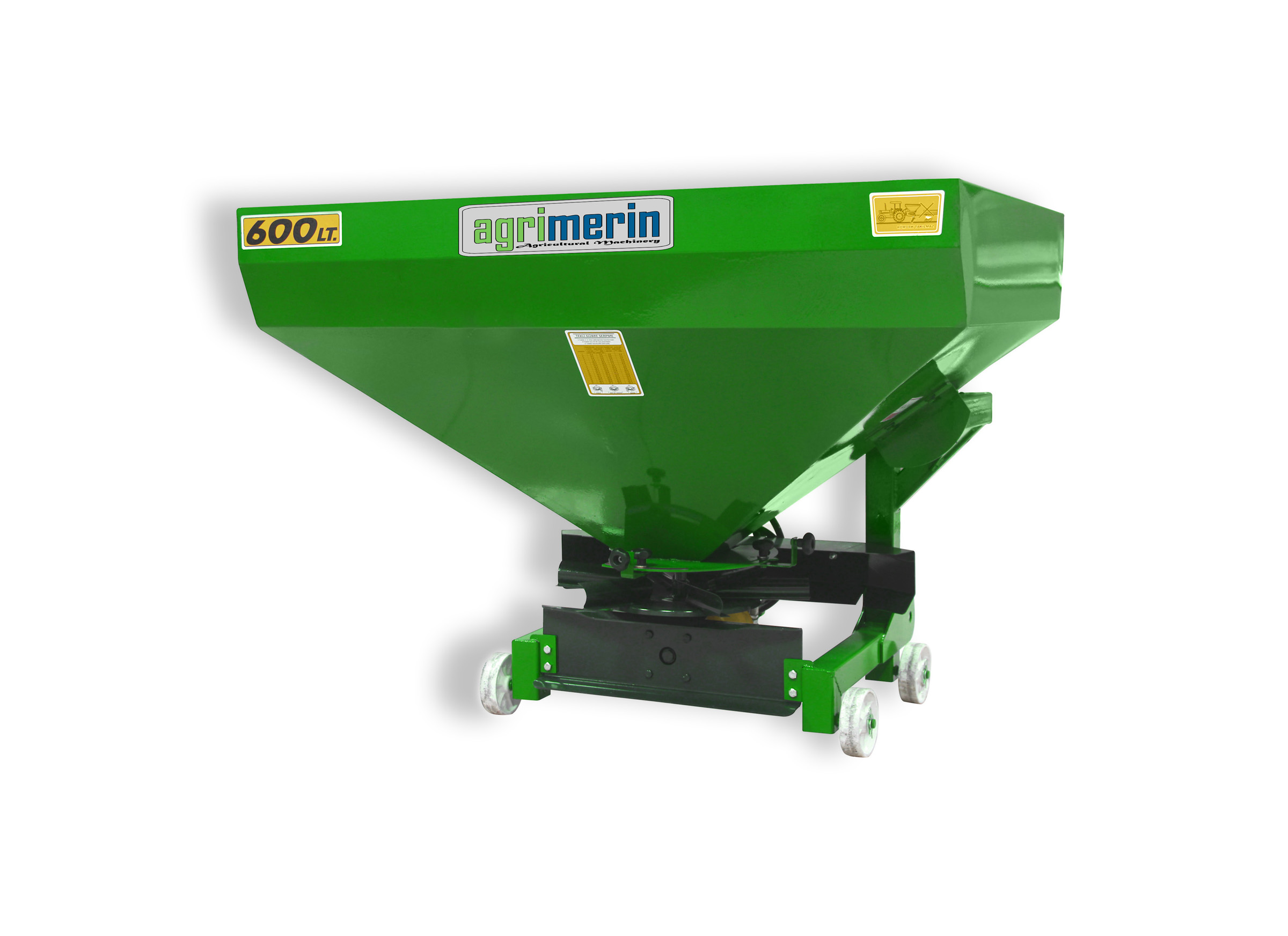

Single Disc Fertilizer Spreader - Square Type
Single Disc Fertilizer Spreader - Square Type
Product Information
Agrimerin single disc square frame fertilizer spreaders which are produced as hydraulic and towable types are mounted to tractor through three point linkage system. . Fertilizer spreading is easy at the borderline from tractor cabin by hydraulic remote controller so that unnecessary fertilizer consuming is prevented by closing it swiftly. Spreading width of the machine can be between 10-24 meters however these adjustments must be performed by changing the the angle and the length of the wings on the disk depending on the fertilizer types. The fertilizer tank is halved by a separator sheet in reverse V shape at the bottom and the mixer in it is located vertically and the fertilizer flow is provided uninterruptedly.
Technical Specification
Specifications* | Units | AMSFS 400 | AMSFS 500 | AMSFS 600 |
Capacity | lt | 400 | 500 | 600 |
Number of Disc | pcs | 1 | 1 | 1 |
Width | mm | 920 | 1000 | 1385 |
Length | mm | 1110 | 1400 | 1500 |
Height | mm | 1200 | 1250 | 1280 |
Weight | kg | 92 | 130 | 145 |
Working Width | m | 15.75 | 15.75 | 15.75 |
Open/Close Adjustment | Mechanic | Hydraulic/Mechanic | Hydraulic/Mechanic | |
Stainless Steel Disc | Optional | Optional | Optional | |
Stainless Steel Wing | Optional | Optional | Optional | |
Required Power | hp | 40-50 | 50-55 | 60-65 |
