Product Information

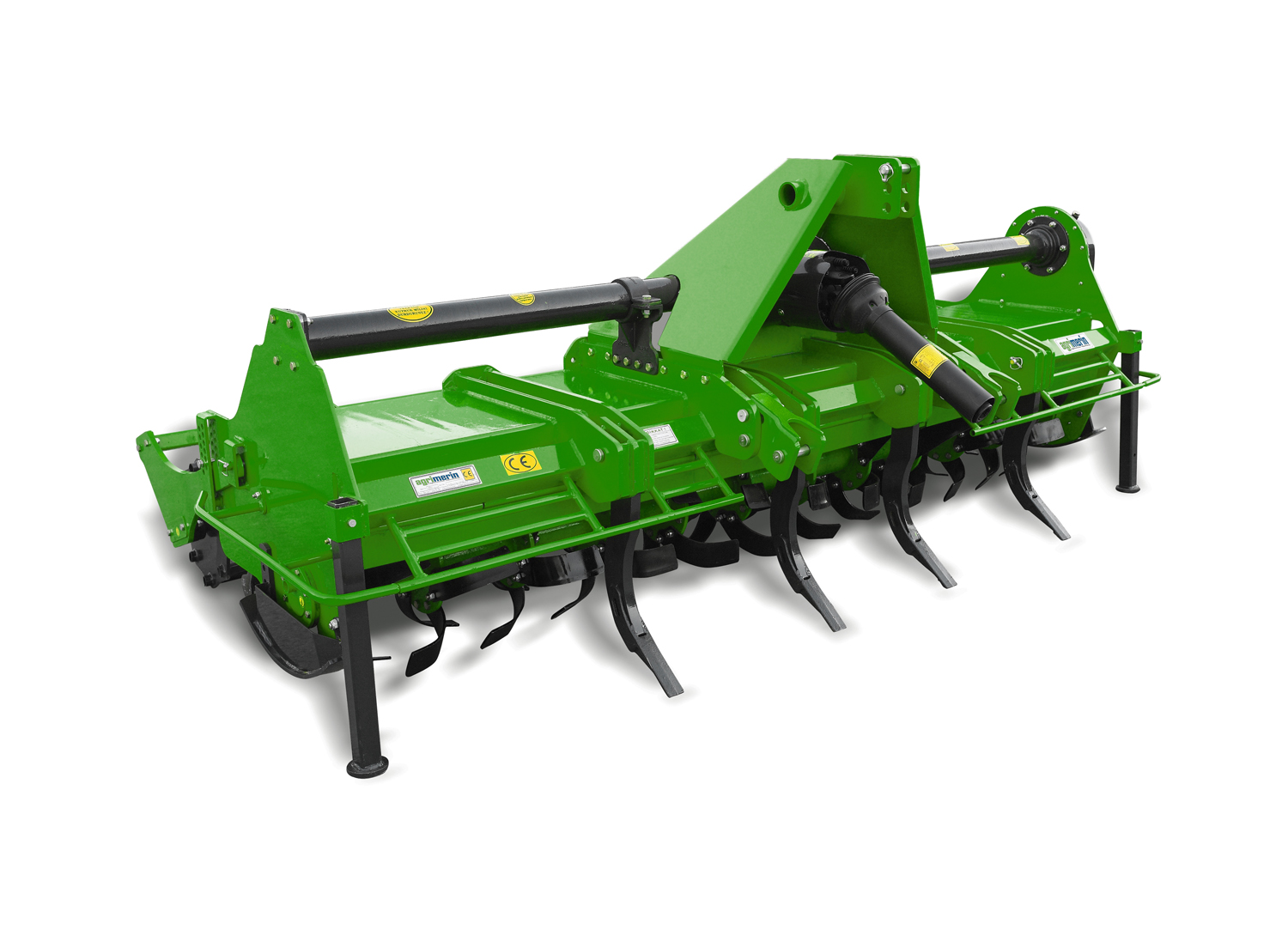

Agrimerin Field Type Rotavator is propelled shaft and connected by three point linkages to tractor. Agrimerin 210 - 235 - 265 - 290 - 315 - 340 cm Rotovator series are prepared a seed bed with tools such as chisel, plow, harrow with time, fuel, equipment investment and cost of repair savings. There is a mechanism to transmit the turnover speed of blades that break down the soil thanks to four different gears in the gearbox.

Technical Specification
Specifications* Units AMFTR 210 AMFTR 235 AMFTR 265
Machine Width mm 2330 2580 2930
Working Depth mm 200 200 200
Machine Weight kg 950 990 1150
Machine Height mm 1260 1260 1260
PTO rpm rev/min 540 540 540
Number of Knives 48 54 60
Power Required hp 60/70 70/80 80/90
Specifications* Units AMFTR 290 AMFTR 315 AMFTR 340
Machine Width mm 3180 3430 3680
Working Depth mm 200 200 200
Machine Weight kg 1230 1350 1600
Machine Height kg 1260 1260 1260
PTO rpm rev/min 540 540 540
Number of Knives 66 72 78
Power Required hp 90/100 100/110 110/120

*Gear Box

Specifications* Units AMFTR 210 AMFTR 235 AMFTR 265
Oil Amount lt 5 5 7
Oil Type SAE 140 SAE 140 SAE 140
Oil Change 300 300 300
Specifications* Units AMFTR 290 AMFTR 315 AMFTR 340
Oil Amount lt 7 7 7
Oil Type SAE 140 SAE 140 SAE 140
Oil Change 300 300 300
